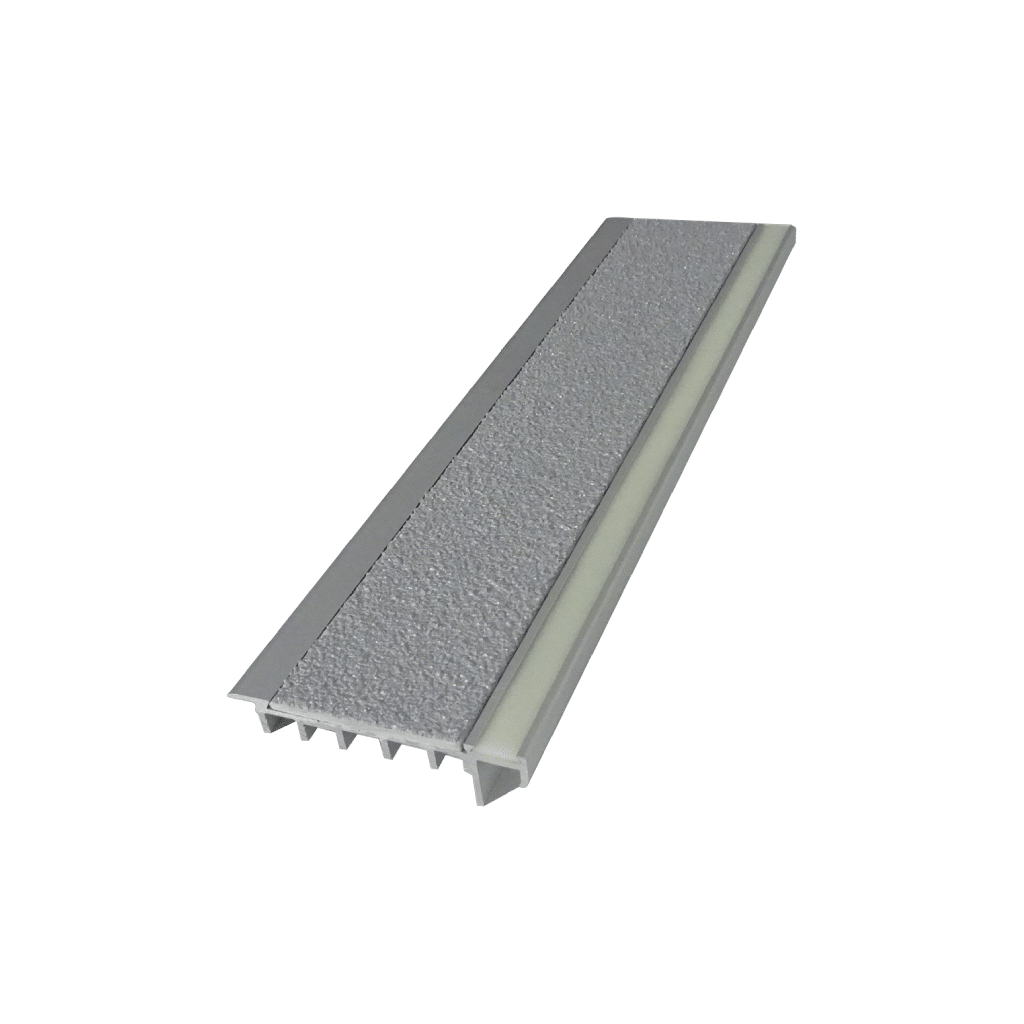

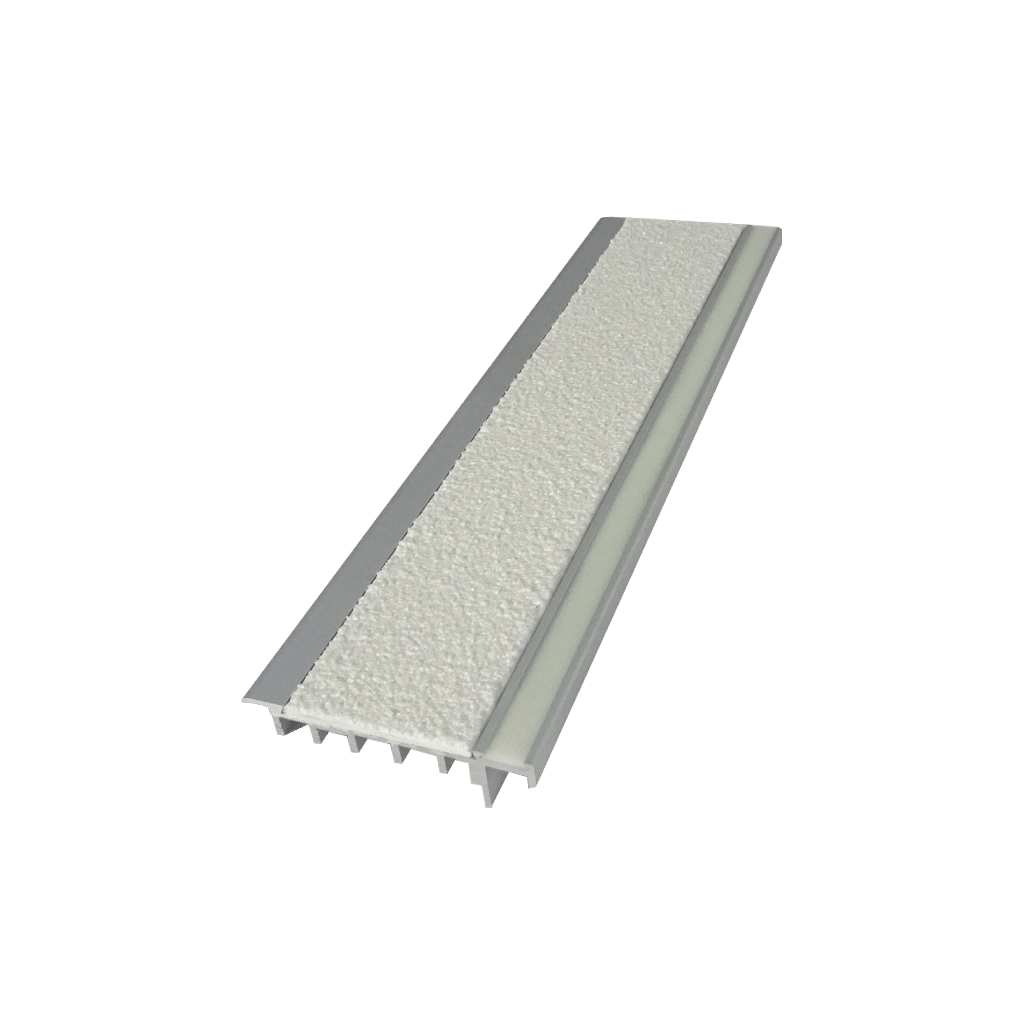

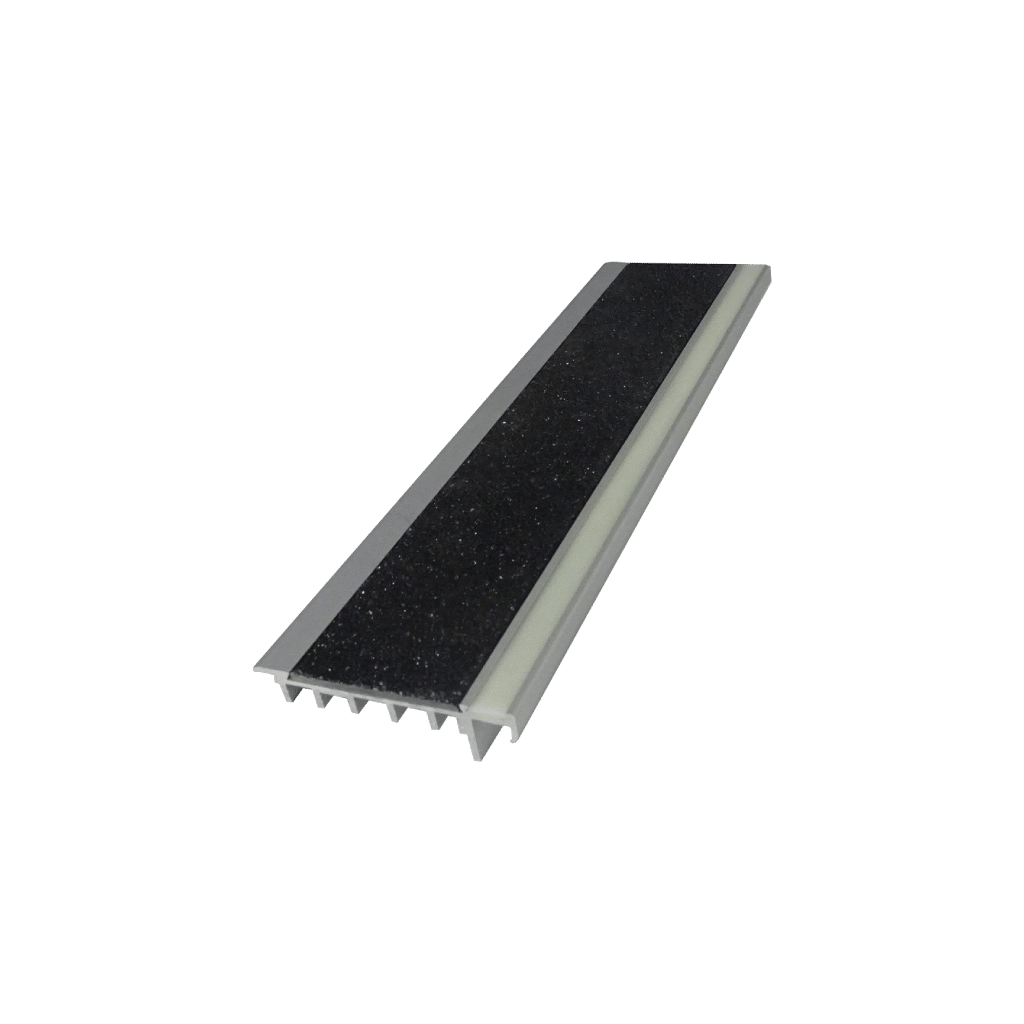

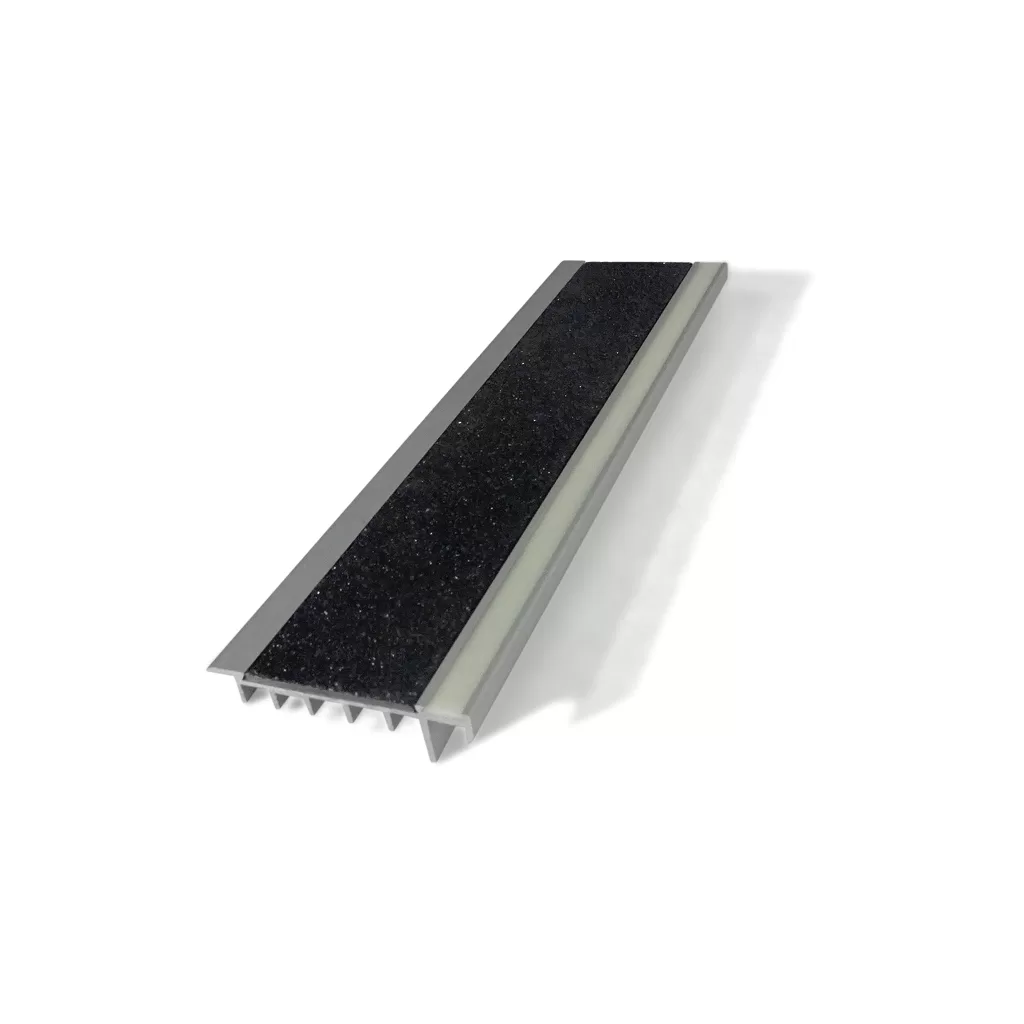

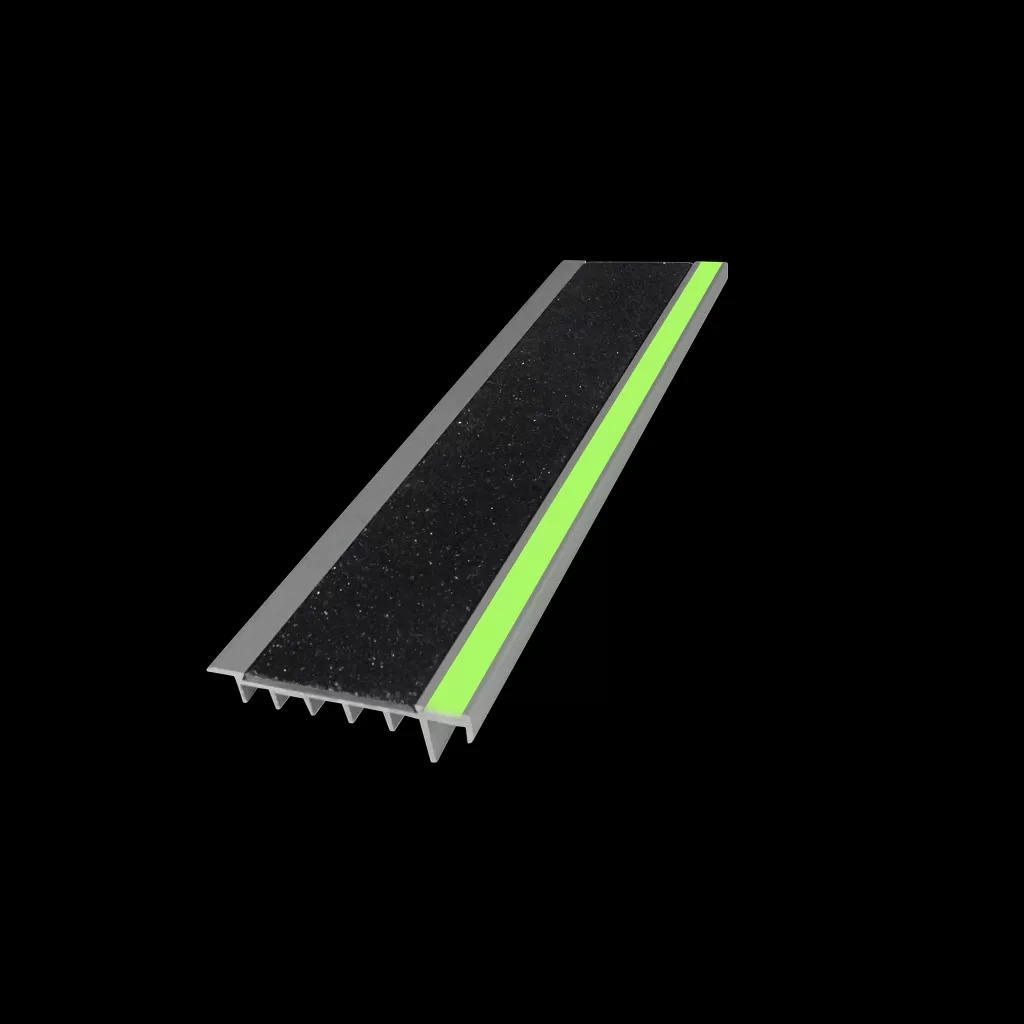

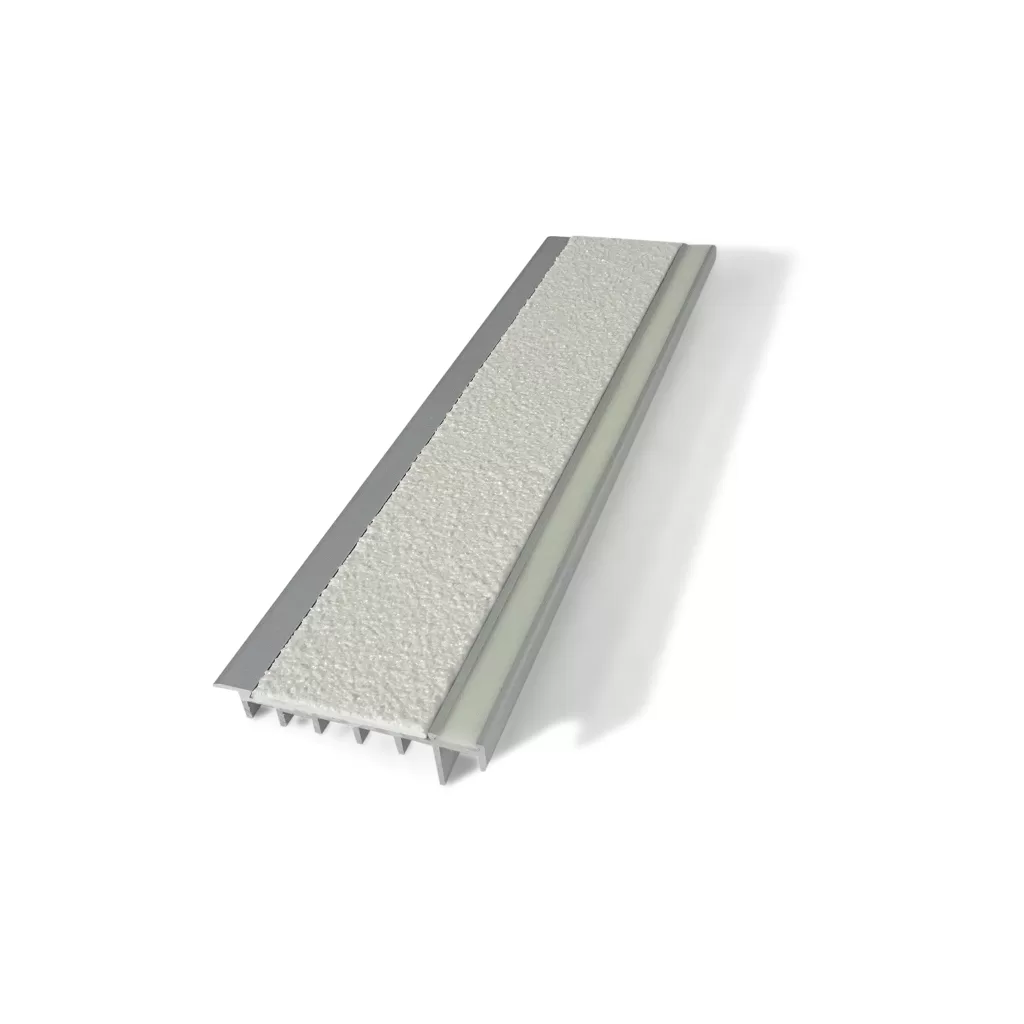

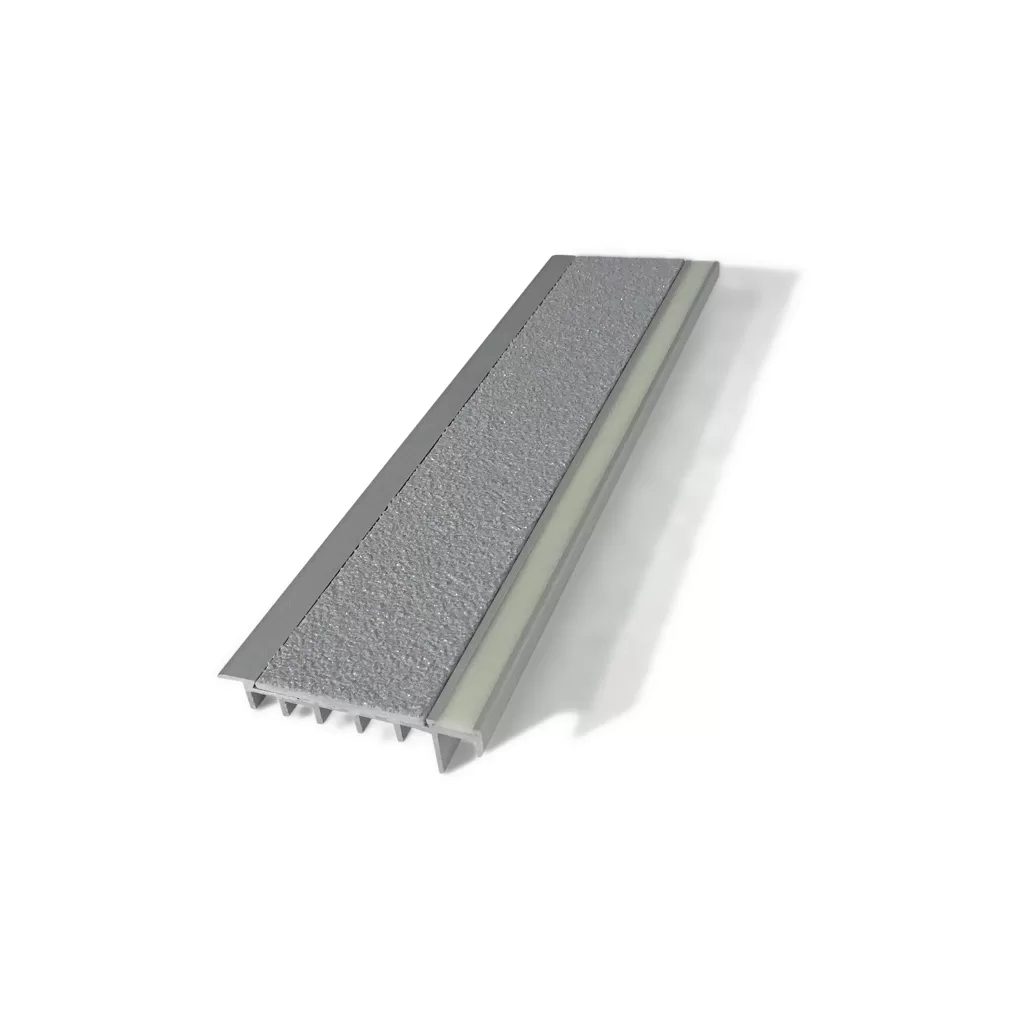

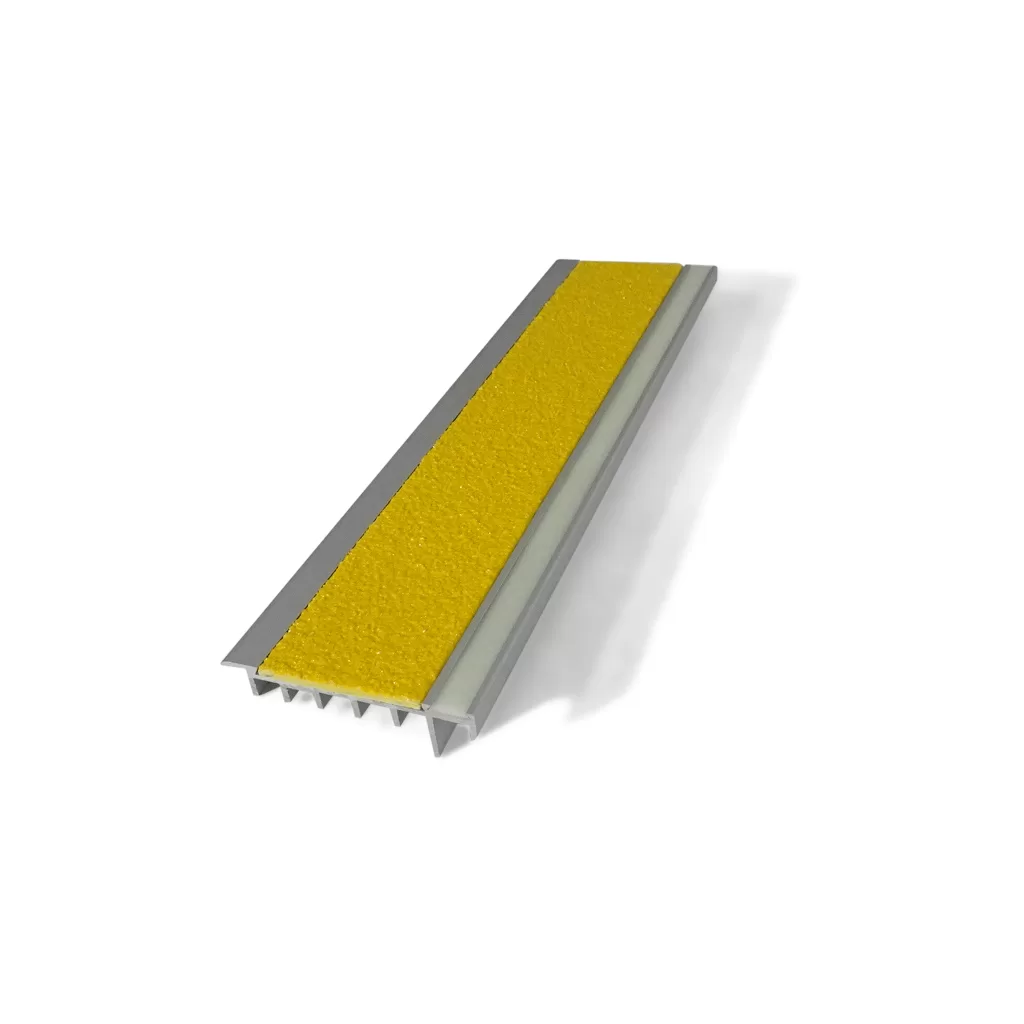

Securaglow SG4
Specifications
Base Material:
Alloy: 6060, Temper: T5
Finish:
Clear anodised
Tread Width:
78.5mm
Front Depth:
10mm
Tread Thickness:
4.8mm
Glow Strip:
12mm photoluminescent strip
Insert Type:
Solid silicon carbide – Heavy duty, external grade
Insert Width:
50mm
Insert Colours:
Black, yellow, light grey, white
Insert Slip Rating:
P5/R12
Code Compliance:
AS1428.1-2021
Features:
Pre-drilled and countersunk for concealed fixings – once installed, insert covers all fixings
Application:
Surface mounted on hard floor finishes
LRV:
Black silicone carbide: Dry 4.50 / Wet 3.05
Yellow silicone carbide: Dry 37.64 / Wet 36.14
Light grey silicone carbide: Dry 33.22 / Wet 32.65
White silicone carbide: Dry 66.48 / Wet 65.56
Finish Colour
Insert Colour
| Base Material: | Alloy: 6060, Temper: T5 |
| Finish: | Clear anodised |
| Tread Width: | 78.5mm |
| Front Depth: | 10mm |
| Tread Thickness: | 4.8mm |
| Glow Strip: | 12mm photoluminescent strip |
| Insert Type: | Solid silicon carbide – Heavy duty, external grade |
| Insert Width: | 50mm |
| Insert Colours: | Black, yellow, light grey, white |
| Insert Slip Rating: | P5/R12 |
| Code Compliance: | AS1428.1-2021 |
| Features: | Pre-drilled and countersunk for concealed fixings – once installed, insert covers all fixings |
| Application: | Surface mounted on hard floor finishes |
| LRV: | Black silicone carbide: Dry 4.50 / Wet 3.05 Yellow silicone carbide: Dry 37.64 / Wet 36.14 Light grey silicone carbide: Dry 33.22 / Wet 32.65 White silicone carbide: Dry 66.48 / Wet 65.56 |
| Finish Colour |
|
| Insert Colour |
|
Securatread Securaglow products are designed to ensure evacuation routes have sufficient visibility in an emergency for compliance with NCC 2019 EP4.1. The products will be effective in all light conditions including during failure of the main lighting at which point Securatread Securaglow’s photoluminescent products remain luminous and therefore clearly visible, meeting the requirements of EP4.1.
All products have been independently tested in accordance with UL1994 to 10 metres visibility to ensure compliance with EP4.1.
The performance of Securatread Securaglow’s photoluminescent stair nosing insert has been verified by testing in accordance with NCC 2019 specification E4.8 3(c).
When exposed to an illumination of 54 lux for one hour using a lamp of CCT 400k gave a reading of 38mcd/m² after 90 minutes. This well exceeds the minimum luminance of 30mcd/m² after 90 minutes required to meet NCC BCA Vol 1 specification E4
