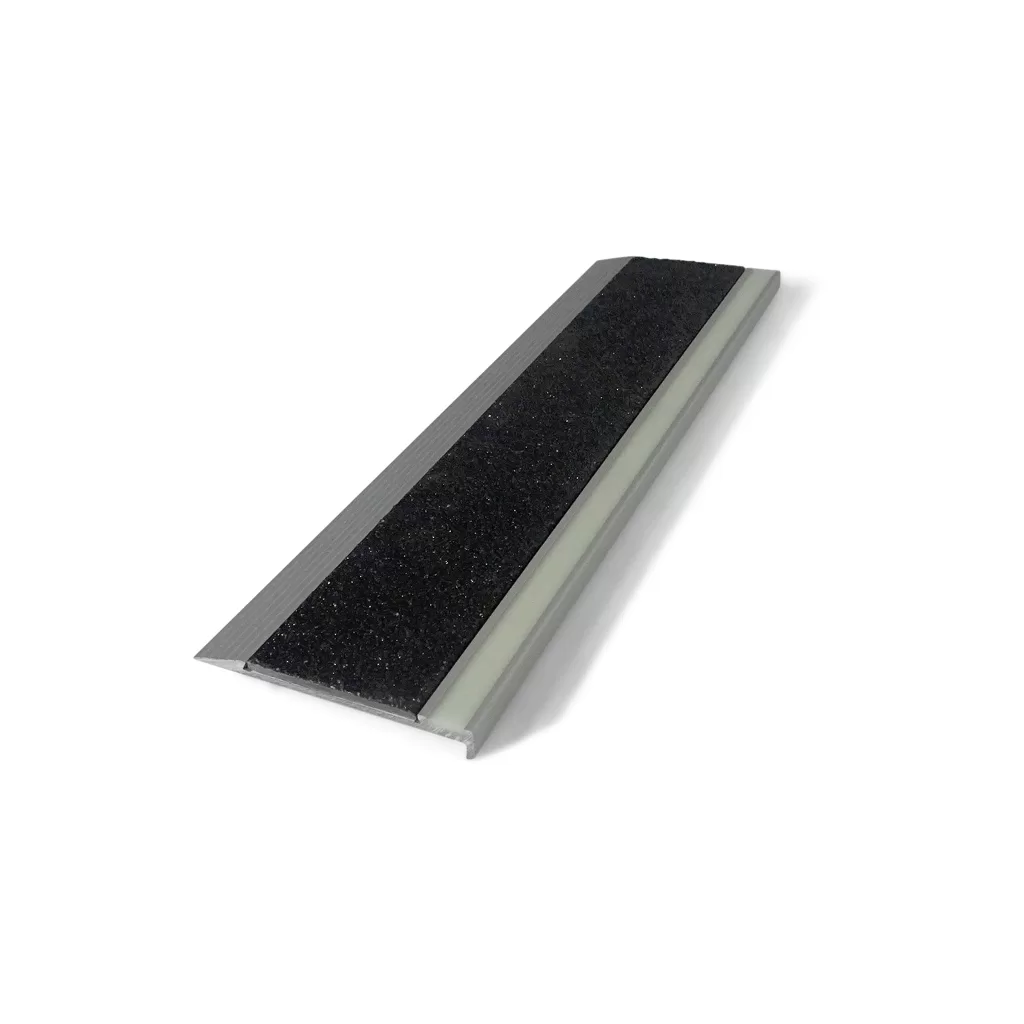

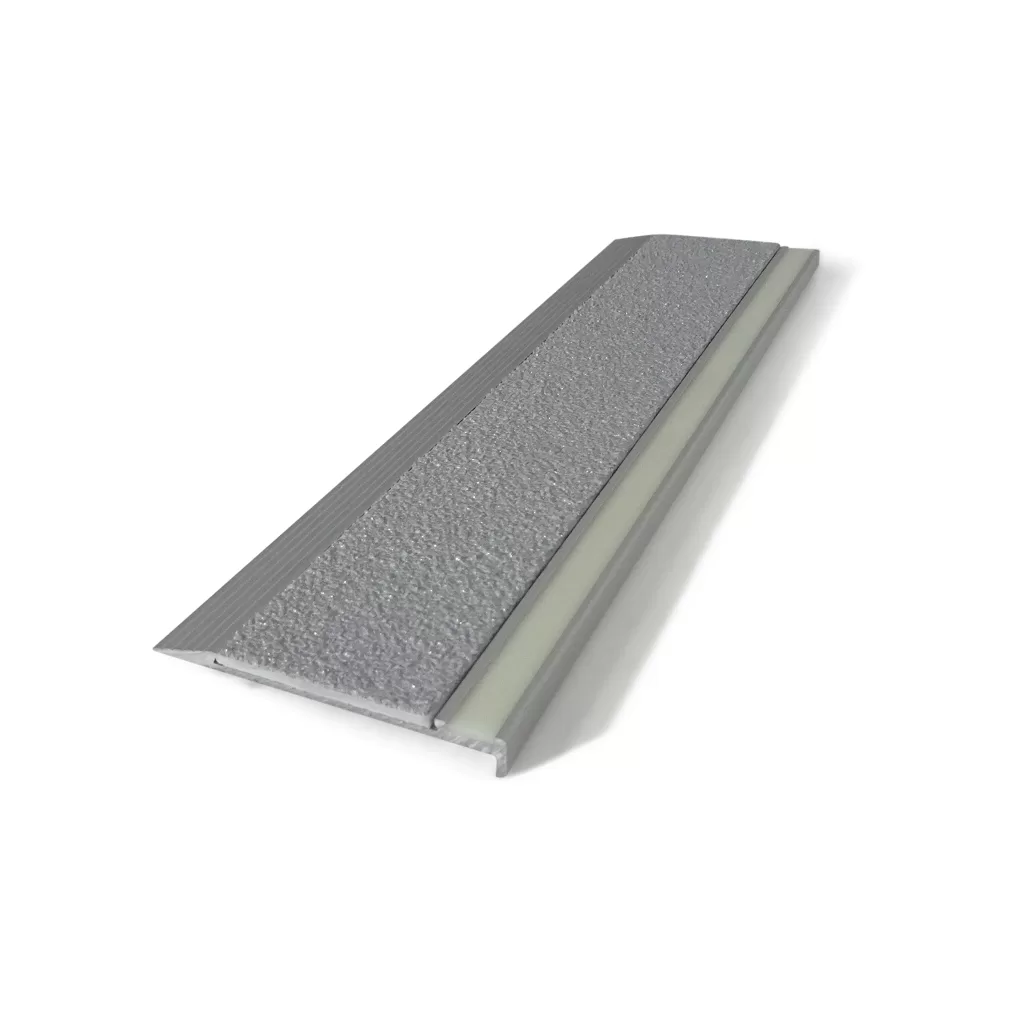

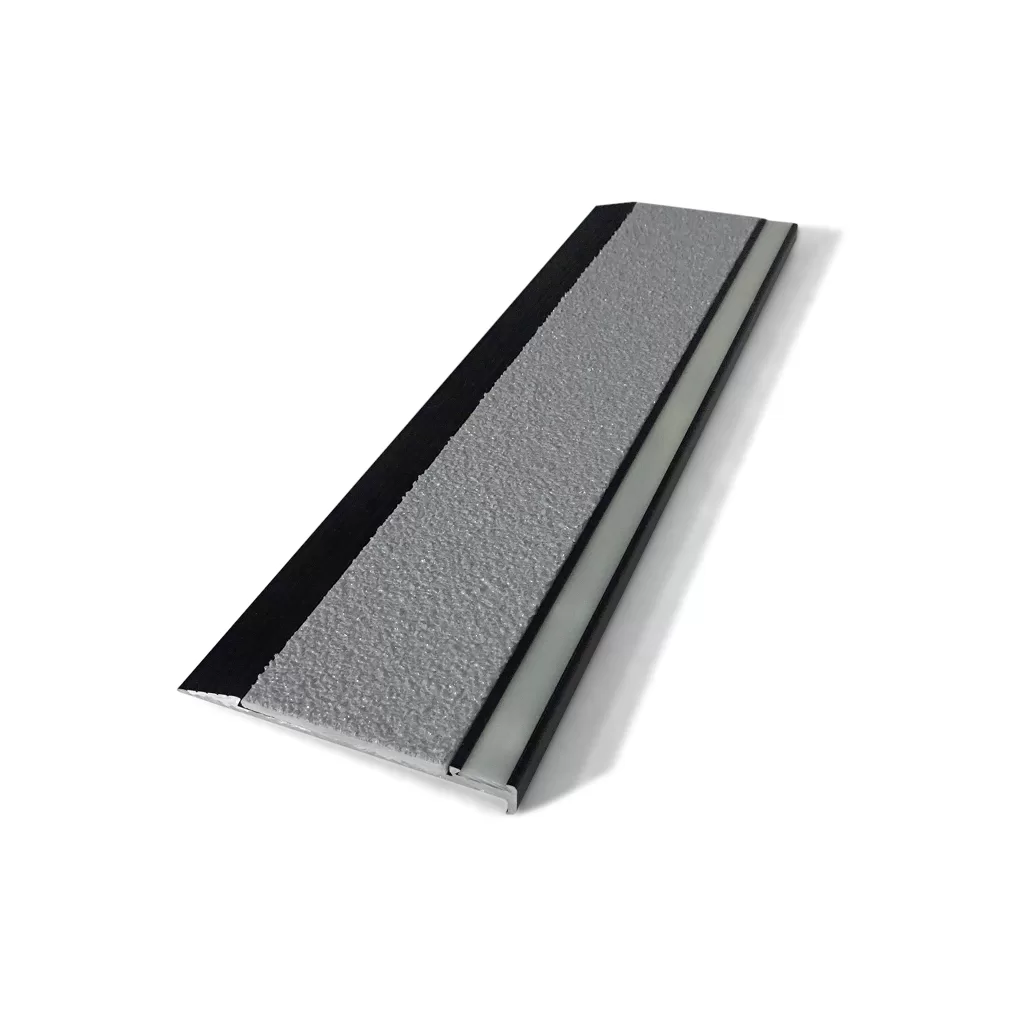

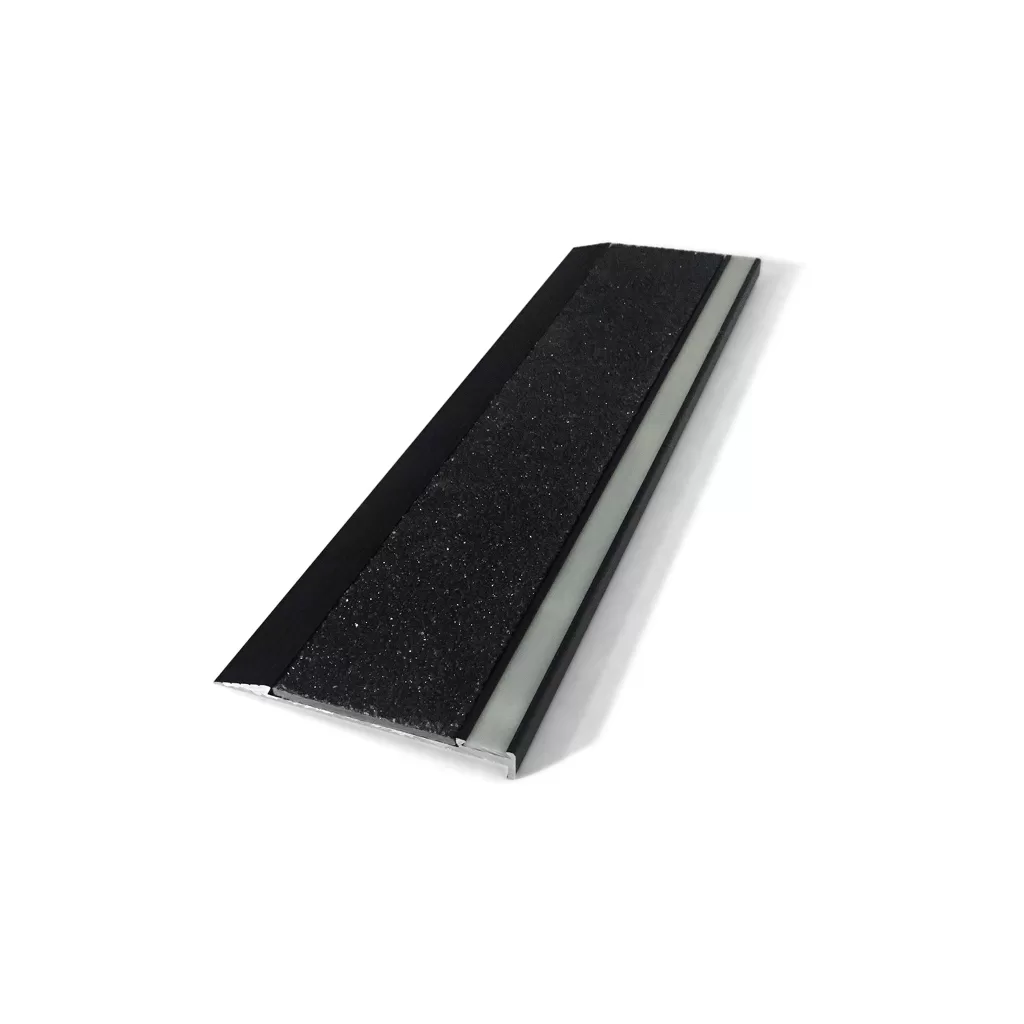

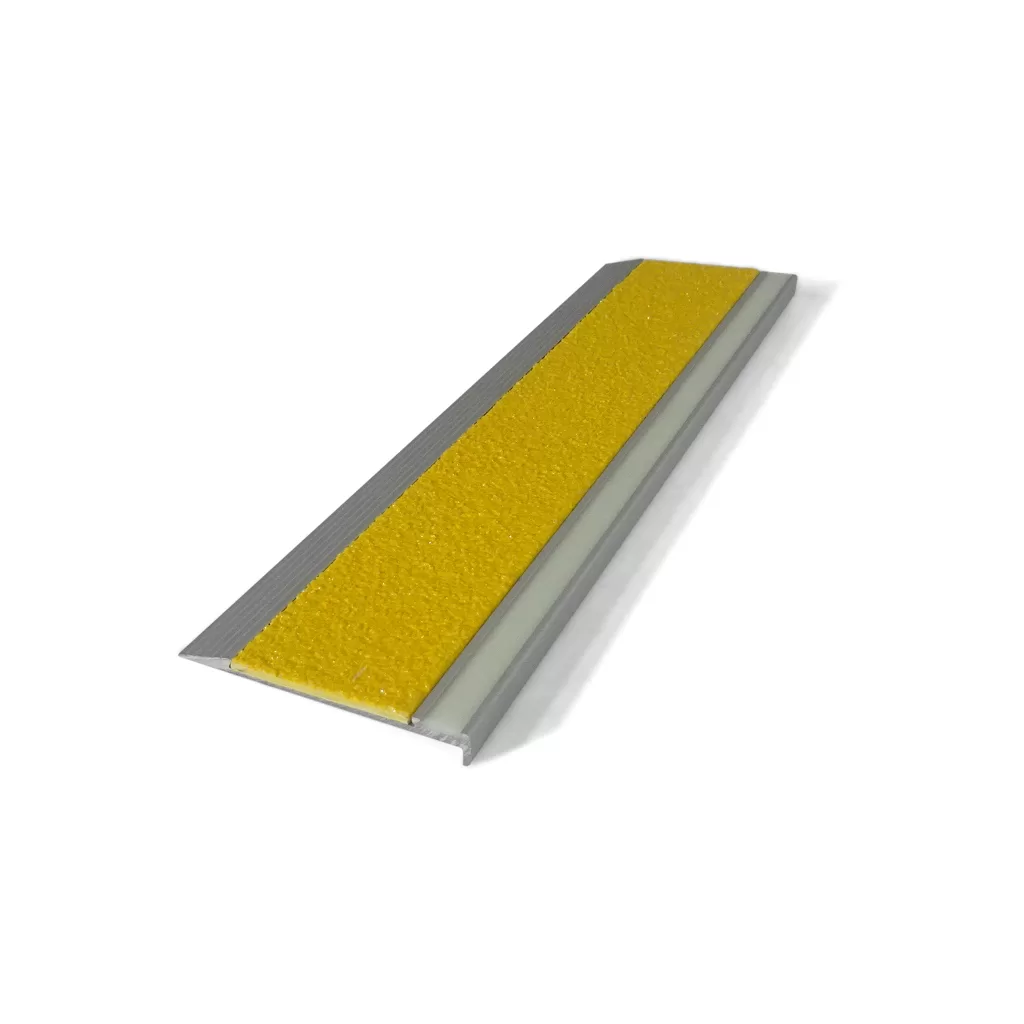

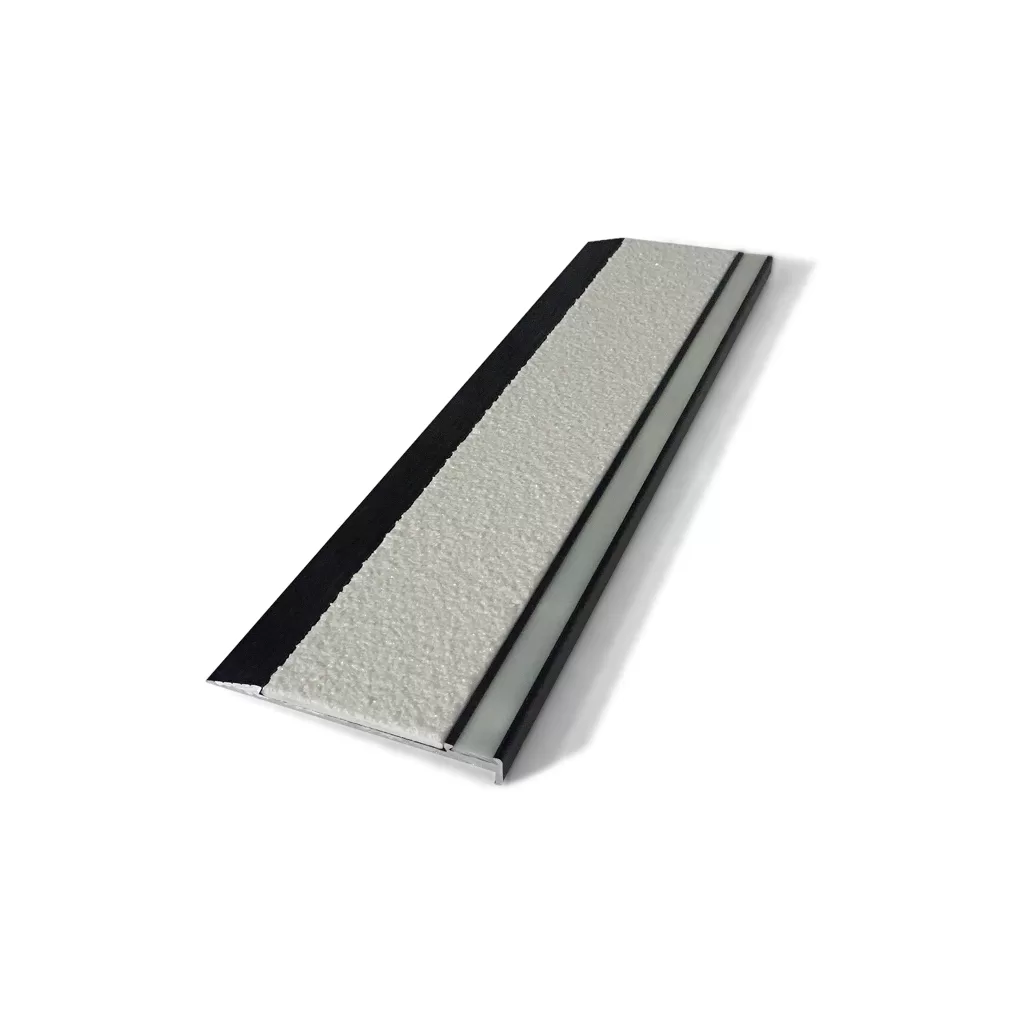

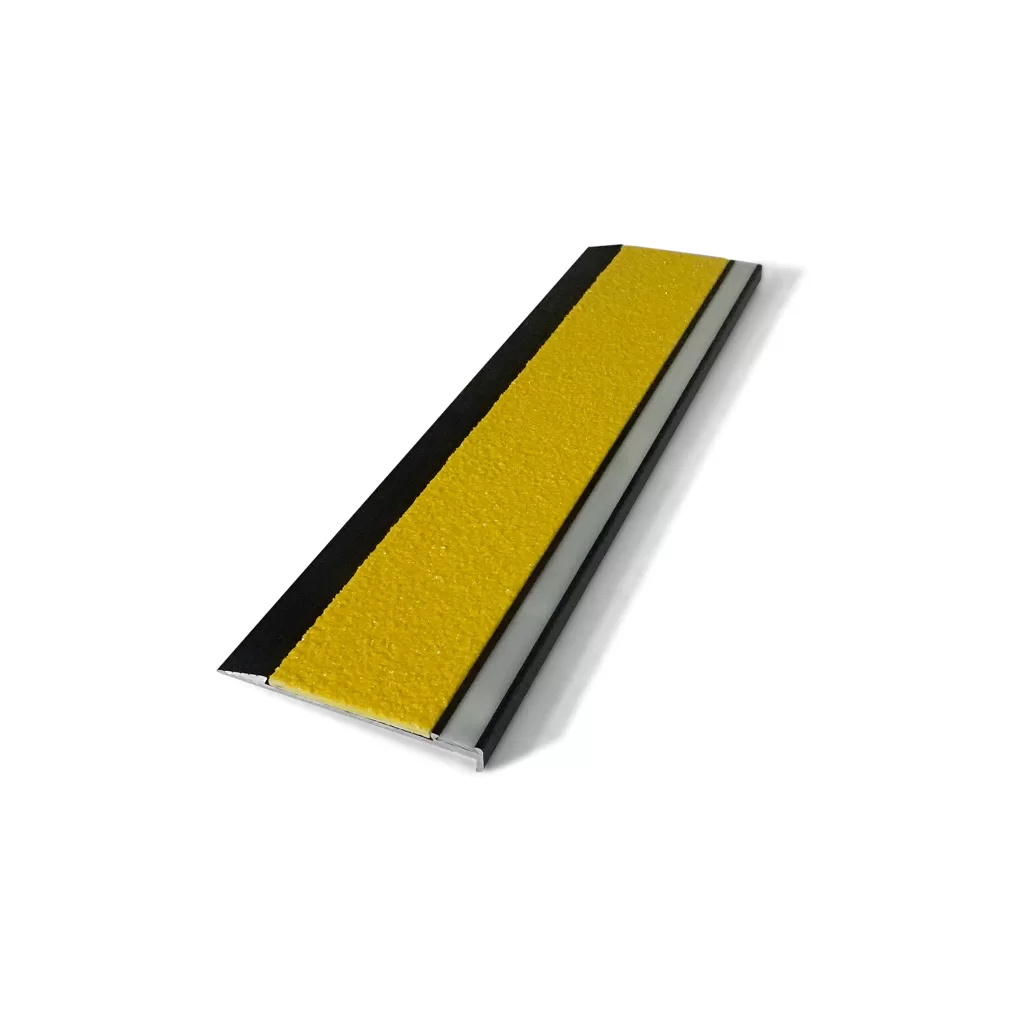

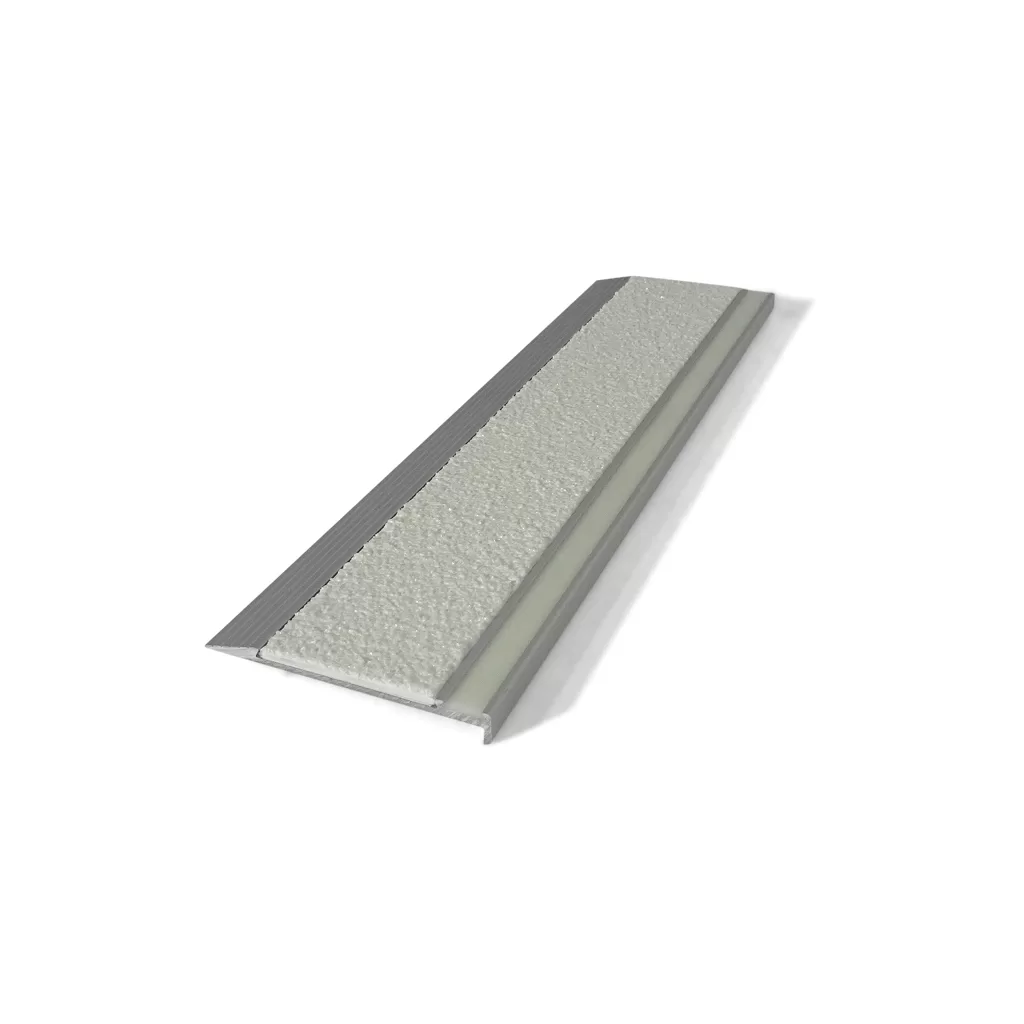

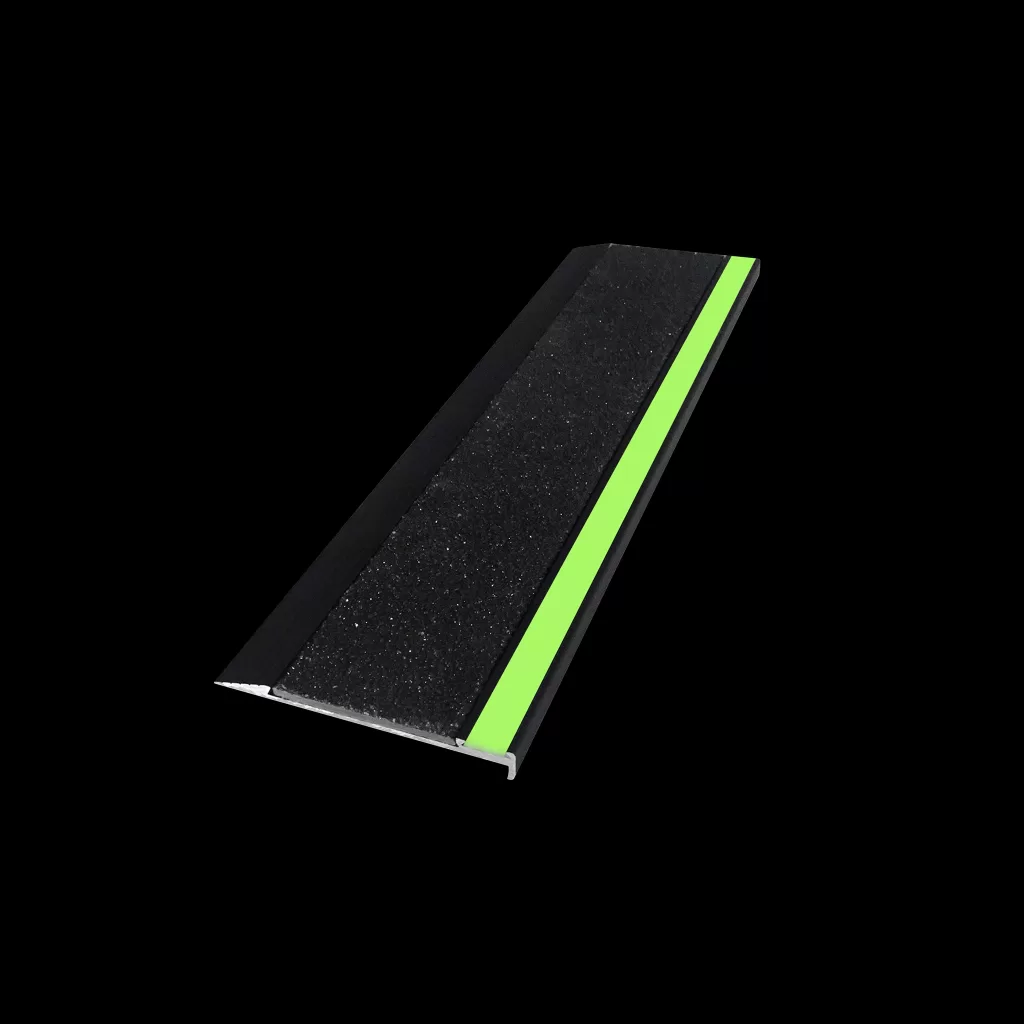

Securaglow SG1
Specifications
Base Material
Alloy : 6060, Temper : T5
Finish
Clear anodised, Black anodised
Tread Width
84mm
Front Depth
10mm
Tread Thickness
4.8mm
Glow Strip
12mm photoluminescent strip
Insert Type
Solid silicon carbide – Heavy duty, external grade
Insert Width
50mm
Insert Colours
Black, yellow, light grey, white
Insert Slip Rating
P5/R12
Code Compliance
AS1428.1-2021
Features
Pre-drilled and countersunk for concealed fixings – once installed, insert covers all fixings
Application
Surface mounted on hard floor finishes
LRV
Black silicone carbide: Dry 3.05 / Wet 4.50
Yellow silicone carbide: Dry 36.14 / Wet 37.64
Light grey silicone carbide: Dry 32.65 / Wet 33.22
White silicone carbide: Dry 65.56 / Wet 66.48
Finish Colour
Insert Colour
| Base Material | Alloy : 6060, Temper : T5 |
| Finish | Clear anodised, Black anodised |
| Tread Width | 84mm |
| Front Depth | 10mm |
| Tread Thickness | 4.8mm |
| Glow Strip | 12mm photoluminescent strip |
| Insert Type | Solid silicon carbide – Heavy duty, external grade |
| Insert Width | 50mm |
| Insert Colours | Black, yellow, light grey, white |
| Insert Slip Rating | P5/R12 |
| Code Compliance | AS1428.1-2021 |
| Features | Pre-drilled and countersunk for concealed fixings – once installed, insert covers all fixings |
| Application | Surface mounted on hard floor finishes |
| LRV | Black silicone carbide: Dry 3.05 / Wet 4.50 Yellow silicone carbide: Dry 36.14 / Wet 37.64 Light grey silicone carbide: Dry 32.65 / Wet 33.22 White silicone carbide: Dry 65.56 / Wet 66.48 |
| Finish Colour |
|
| Insert Colour |
|
Securatread Securaglow products are designed to ensure evacuation routes have sufficient visibility in an emergency for compliance with NCC 2019 EP4.1. The products will be effective in all light conditions including during failure of the main lighting at which point Securatread Securaglow’s photoluminescent products remain luminous and therefore clearly visible, meeting the requirements of EP4.1.
All products have been independently tested in accordance with UL1994 to 10 metres visibility to ensure compliance with EP4.1.
The performance of Securatread Securaglow’s photoluminescent stair nosing insert has been verified by testing in accordance with NCC 2019 specification E4.8 3(c).
When exposed to an illumination of 54 lux for one hour using a lamp of CCT 400k gave a reading of 38mcd/m² after 90 minutes. This well exceeds the minimum luminance of 30mcd/m² after 90 minutes required to meet NCC BCA Vol 1 specification E4
